Description
Animal Vet Multi-Parameter Veterinary Monitor with EtCO2 12" screen
High Accurate and reliable. EtCo2 function included.
Temperature:
Measuring Range: 15℃~50℃
Measuring error: ± 0.1℃
Resolution: 0.1℃
Accuracy: ± 0.2℃ (including sensor)
Probe:
Standard configuration: permanent body temperature probe
Optional configuration: esophageal temperature probe, rectal temperature probe
Alarm: all monitoring parameters can be set for alarm limit, and it has a sound and light alarm function, also can turn-off the alarm when doctors noticed.
Features

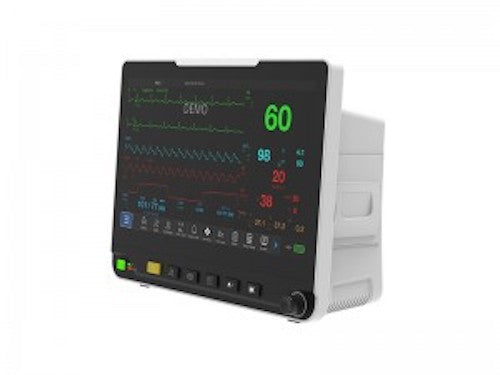

- 13.3 inch color LCD, full view display, high resolution 1366×768dpi;
- Standard parameters: ECG, SpO2, NIBP, RESP, Temperature, Heart Rate;
- 10 levels adjustment for the brightness of screen;
- Double over-pressure protection from NIBP software and hardware to ensure patient safety;
- 4 operation languages optional, friendly operating system, convenient input for patient information;
- Parameter color adjustment function, medical staff can define the color of background / waveform / font;
- International standard, sound and light three-level alarm, more safe and more professional;
- Adjustable volume: 5 levels;
- Large capacity built-in lithium battery, continuous working time not less than 300 minutes;
- When the waveform screen is frozen, real-time parameters are continuously displayed in the parameter area. The frozen waveform can be flipped back and forth along the time axis; Support USB firmware upgrade, good maintainability;
- Support central monitoring system access to the HL7 protocol;
- Support WIFI, Bluetooth and other transmission functions;
- HDMI HD video output;
- Optional for built-in thermal matrix recorder, three trace waveform;
- Very short boot time, 10 seconds into the working state;
- Reserved ETCO2 interface to support plug-and-play CO2 module.
Specifications
ECG:
Leads: 3/5 leads; most 7 ECG calculation leads can be
displayed on the screen Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V leads
Measuring range: 20 ~ 300bpm
Resolution: 1bpm
Accuracy: the bigger one between ± 2% or ± 2bpm
Frequency response: 0.67Hz – 40Hz
S-T segment monitoring: -2.0mV ~ 2.0mV
Electrode drop indication: sound and light indicator
Sweep rate: 6.25, 12.5, 25, 50mm/s
Gain: ×0.125, ×0.25, ×0.5, ×1, ×2, ×4, Auto
Electrical calibration: 1mV + 5%
Protection isolation withstands 4000V/AC / 50Hz
Lead cable: 3/5 lead
Standard configuration: universal adult ECG cable
Optional configuration: special ECG cable for Neonate and Pediatric
Alarm: upper and lower limits of alarm value can be set, automatic memory
