Description

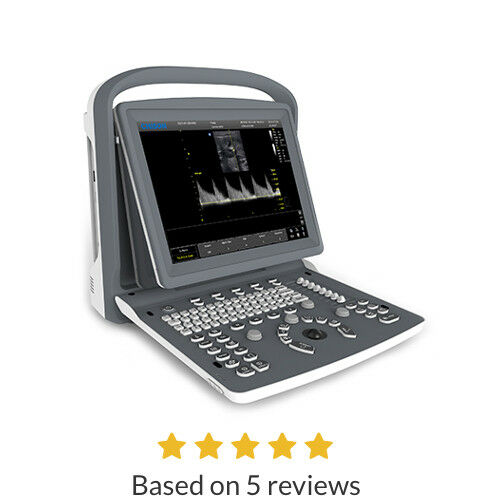

Chison ECO2 Portable Ultrasound Machine with Battery, One Probe, and LED Screen
Chison ECO2
New with Warranty, Portable Ultrasound with One Probe of Choice, (specify at checkout)
- C3-A: Convex (2.5-5.0MHz)
- MC3-A: Micro-Convex (2.5MHz-5.0MHz)
- MC6-A: Micro-Convex (4.5MHz to 8MHz)
- L7M-A: Linear (5.3 MHz to 10.0MHz)
- L7S-A: Linear (5.3MHz-11.0MHz)
- V6-A: Transvaginal (4.0MHz-8.0MHz)
- R7-A: Transrectal (5.0MHz-10.0 MHz)
Powerful and Affordable B&W Ultrasound System
ECO2 uses the latest advanced technologies such as: Compound Imaging, SRA, Multiple Beam-forming, and Tissue Harmonic Imaging. These improve the image quality, resolution, penetration and frame rate, and ECO is the only system that has all these advanced features on a black and white ultrasound.
ECO2 is lightweight at 14 pounds including battery. The AC adapter is very small and lightweight for travel, three times smaller than most other portable machines.
ECO2 has a medical grade LED screen to allow a brighter image outdoors, and is energy saving and eco-friendly compared to other models with LCD.
ECO2 feature's one key to full screen image, making the image as a 15" screen, while keeping the machine small and portable.
ERGONOMICS
- Rotatable LED (0~30°) for different viewing angles
- Ultra-compact & Ultra-light
- Easy to carry
- Keyboard : For easy and quick access
- Dedicated cart TR 9000 (optional)
- Streamlined workflow
ECHO
- Advanced technologies:
- i-Image (Intelligent image optimization)
- THI (Tissue Harmonic Image)
- SRA (Speckle Reduction Algorithm)
- Compound imaging
- Full digital beam-former
- Trapezoid
- Automatic PW trace
- Chroma
- Full screen display mode
- AIO (Automatic image optimization)
ECONOMIC
- The latest platform & more advanced chip-set:brings you better image quality and features at less cost in a more compact box
- Support PC printer, reduce investment & day to day paper cost
- 8G memory card
- 320G harddisk (option)
- Vehicular Charging
ECO-FRIENDLY
- Less radiation
- Less power consumption
- Longer usage life: LED
- Longer battery standby time:>2 hours
Applications |
Abdomen,OB/GYN,Vascular, Small parts(breast, testicles, thyroid),Musculoskeletal Conventional & Superficial, Pediatric, Basic Cardiac |
Imaging technologies |
i-Image, SRA, Compound, THI |
Display Modes |
B, B/B, 4B, M, B/M,PW |
Gray Scale |
256 Levels |
Scanning Depth |
240mm Max (depending on probe) |
Probe Frequency |
2.5 MHz - 11.0 MHz (depending on probe) |
Cine Loop |
256 frames |
Zoom |
4 steps |
Software Packages |
Dedicated measurement package: General, OB/GYN, URO, Cardiac, Vascular, Small parts |
Archives Management |
Patient information management, images record, exam report |
Power Supply |
AC 100V-240V, 50Hz- 60Hz |
Standard Configuration |
1 probe connector, 3 USB ports, VGA port, Video port, LAN port Full Screen Display Mode, i-Image,Chroma, SRA, Compound imaging,THI 8G memory card, PW Mode, DICOM 3.0 Built-in Battery, Carrying Case |
Option |
2 probe connectors, Water-proof keyboard cover, Cart TR 9000, Video Printer |
KeeboMed, Inc.
Mount Prospect, IL USA
"The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. Authorized purchasers only. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item."
If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiological Health.
We accept payment by any of the following methods:
PayPal
Please pay as soon as possible after winning an auction, as that will allow us to post your item to you sooner!
We offer FREE shipping on all orders in the USA!
Your order will be dispatched within 1 working day of receiving payment (Monday-Friday) and you should expect to receive it as soon as possi.
In the very unlikely event that your item is lost or damaged during post, then WE are responsible and will issue either a full refund or replacement.
If you are not 100% satisfied with your purchase, you can return the product and get a full refund or exchange the product for another one, be it similar or not.
You can return a product for up to 14 days from the date you purchased it.
Any product you return must be in the same condition you received it and in the original packaging. Please keep the receipt.
