Ultrasound Machine

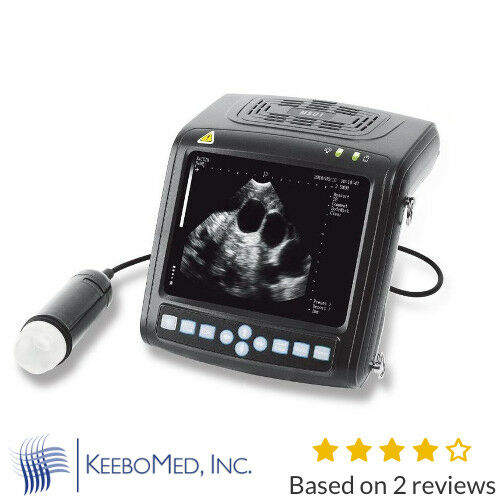

Hand Held Wrist Ultrasound Scanner for Goat,Pig,Sheep,Dog,Cat With Sector Probe

LIMITED
OFFER

MSU-1 ultrasound scanner has one of the best performances from a sector probe scanner system.

Image quality is the same as WED-2000 and Tringa50S (sells for $5000), but this model has some advantages that others do not.


Advantages

  • USB Port -You can save the images to the Flash disk and then transfer to PC (WED-2000 and Tringa50S do not)
  • Comes with special video stick so you can save videos-other models do not have it.
  • Has pseudo color (WED-2000 and Tringa50S do not)
  • Has mechanical sector probe 3.5-5.0 MHz excellent for sheep, goats, pigs, dogs, and cats.
  • Mechanical sector scanning technology
  • Ingenious outline and multifunction
  • Mechanical sector probe can be used optionally
  • Very light for using
  • USB disk function make the images easily transferred to computer.
  • Rechargeable battery could last at least 2 hours

Product Feature

  • Technology: All-digital mechanical sector imaging technology, excellent image quality with high resolution and high penetration.
  • Scanning methods: Mechanical sector scanning.
  • Scanning technology: Real-time dynamic imaging, harmonic imaging.
  • Probe: Mechanical sector probe
  • No. Of probe connectors: 1.
  • Monitor: 5.7''high resolution non-interlaced SVGA display.
  • Keyboard: Ergonomic keyboard.
  • Gray scale: 256 levels.
  • Display modes: B, B/B, B/M, M, or 4B.
  • Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
  • Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and*3.0.
  • Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
  • CINE loop: 256-frame.
  • Zoom: Intelligent local zoom in real-time and frozen mode.
  • Pictures storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station.
  • Pictures Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, Angle change, Image freeze/unfreeze, Gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, Frame correlation function, Adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.
  • Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks.
  • Report: Obstetric report.
  • Documentation: Full screen documentation, hospital name, Patient name, date/time.
  • Power Supply: AC 100-240V~, 50-60Hz.
  • Power consumption: ≤ 40VA.
  • Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable.
  • Application For reproduction of swine and goat


Standard Parts

1.  main unit

2. 5.7'' high resolution non-interlaced LCD display

3. 1 probe connector

4. 256-frame CINE loop

5. 100-frame image storage

6. USB disk port

7. Measurement & calculation software packages

8. Mechanical sector probe

9. 4 veterinary body marks


Optional Parts

  • Ultrasound working station
  • USB software with connection cable
  • Ultrasound goggles
  • Rechargeable power supply
  • Rechargeable power supply in car
  • Thermal printer (brand: Mitsubishi, model: P93W-S)
