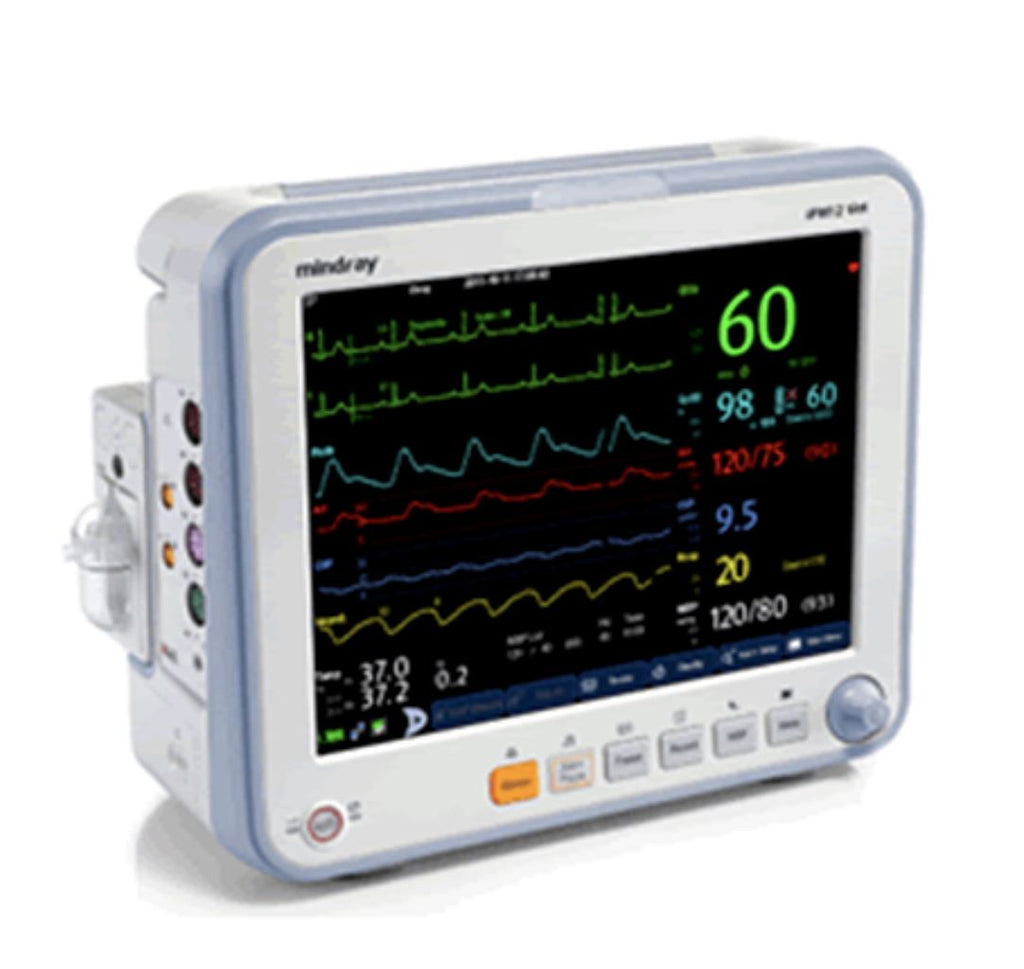

Mindray iPM-12Vet Portable Veterinary Monitor
Features
12.1" High-resolution LED display with 8 waveforms
Lightweight, less than 4.5 kg
Easy to use for intuitive operation
Plug-and-play modular design, more choices for clinical use
No-fan design for a quiet care environment
Trust for veterinary use, parameters including ECG, RESP, SpO2, NIBP, PR, TEMP, IBP, CO2, Multi-gas
360-degree visible alarm indicator
120 hours trend and 48 hours waveforms reviewing
Standard Configuration
ECG
RESP
NIBP
Mindray SpO2
TEMP
Li-ion battery
Specifications
Weight: ≤4.5 kg (12 lb)
Size: <280 x 320 x 130 mm (11 x 12.6 x 5.1 inch)
Display: 12.1" high-resolution LED with 800 x 600 pixels
Waveforms: Up to 8 traces
ECG: 5 or 3 lead: I, II, III, aVR, aVL, aVF, V
Respiration: RA-LA/RA-LL Impedance
SpO2: Masimo SET, Nellcor Oximax
NIBP: Manual, Auto, STAT
Temperature: 2 channels
Multi-gas option: Artema Gas CO2, O2 (option), N2O, Des, Iso, Enf, No Hal, Sev
Recorder: 3-trace thermal array, 50 mm
Reviewing:
120 hours trends
100 alarm events and associated waveforms
1000 groups NIBP
Up to 48 hours waveforms
Download to PC: USB
Video Output: 1VGA
Wired Network: 1 RJ45
ECG
RR Range: 15 - 350 bpm
Speed: 6.25/12.5/25/50 mm/s
ECG Gain: 1.25/2.5/5/10/20/40 mm/mV, Auto Sweep
Mode: Diagnostic, Monitor, or Surgical
PR Range
25 to 240 bpm (Masimo SpO2)
20 to 300 bpm (Nellcor SpO2)
25 to 350 bpm (IBP)
40 to 240 bpm (NIBP)
NIBP Range
Systolic 40 to 270 mmHg
Diastolic 10 to 210 mmHg
Mean 20 to 230 mmHg
Interval in Auto Mode:
1/2/2.5/3/5/10/15/20/30/60/90/120/180/240/ 480min
Max Time Allowed: 180 s
Respiration
Lead: I, II or Auto
RR Range: 0 to 150 rpm
Accuracy: 7 to 150 rpm: ±2 rpm or ±2%, whichever is greater
Nellcor Oximax SpO2
Measurement Range: 20-300 bpm
Accuracy:
20 to 250 bpm: ±3 bpm
251 to 30 bpm: not specified
Masimo SET SpO2
Measurement Range: 25-240 bpm
Accuracy:
±3 bpm (measured without motion)
±5 bpm (measured without motion)
C.O.
Range:
C.O.: 0.1 to 20 L/min
TB: 23 to 43°C
TI: 0 to 27°C
Accuracy:
C.O.: ±5% or ±0.1 L /min whichever is greater
TB, TI: ±0.1°C (without sensor)
Resolution:
C.O.: 0.1 L/min
TB, TI: 0.1°C
IBP
Range: -50 to 300 mmHg
Accuracy: ±2% or±1mmHg whichever is greater
