Description
Veterinary use for Smart Phone, Ultrasound Probe
Works only with Android Systems
Excellent for large animals.

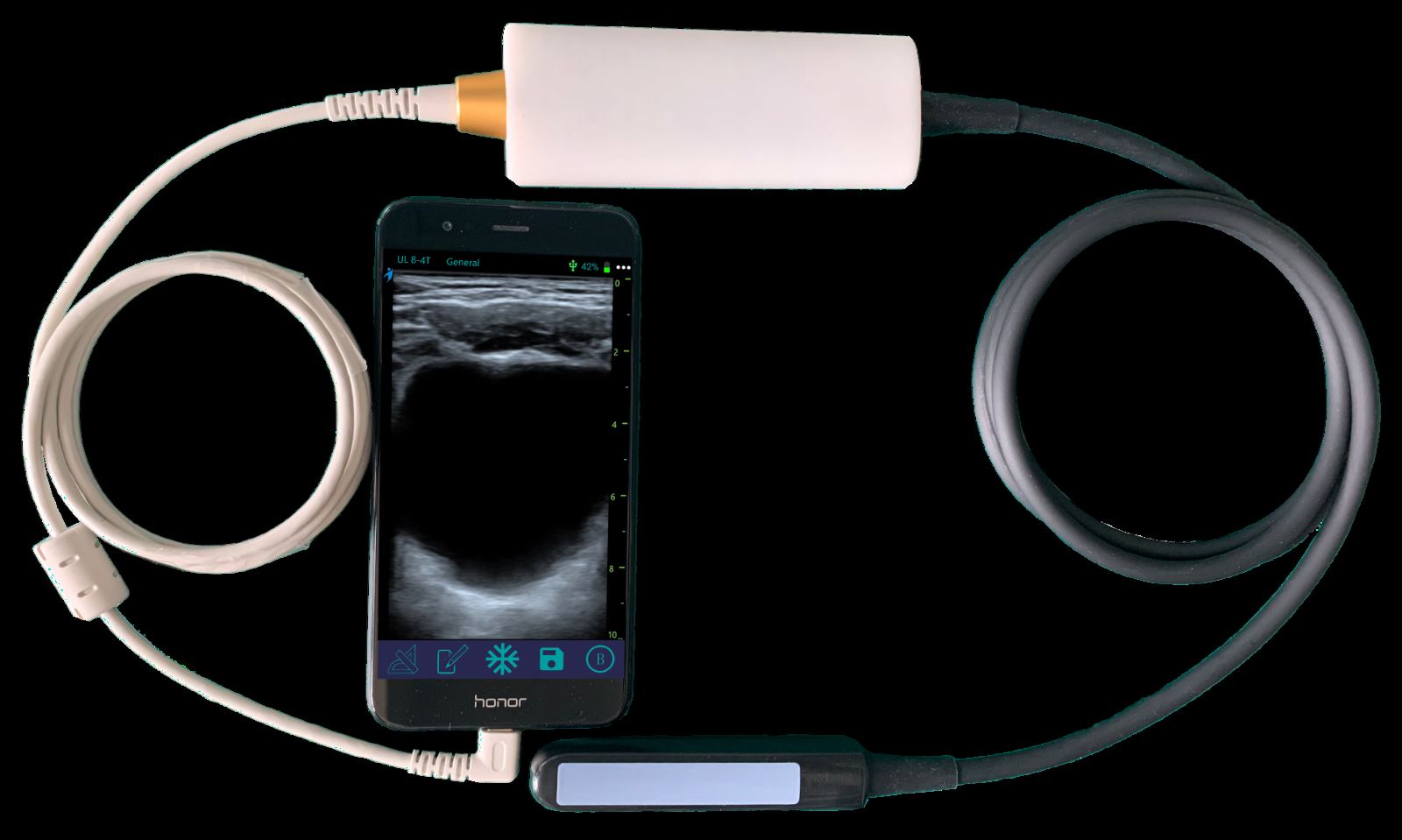

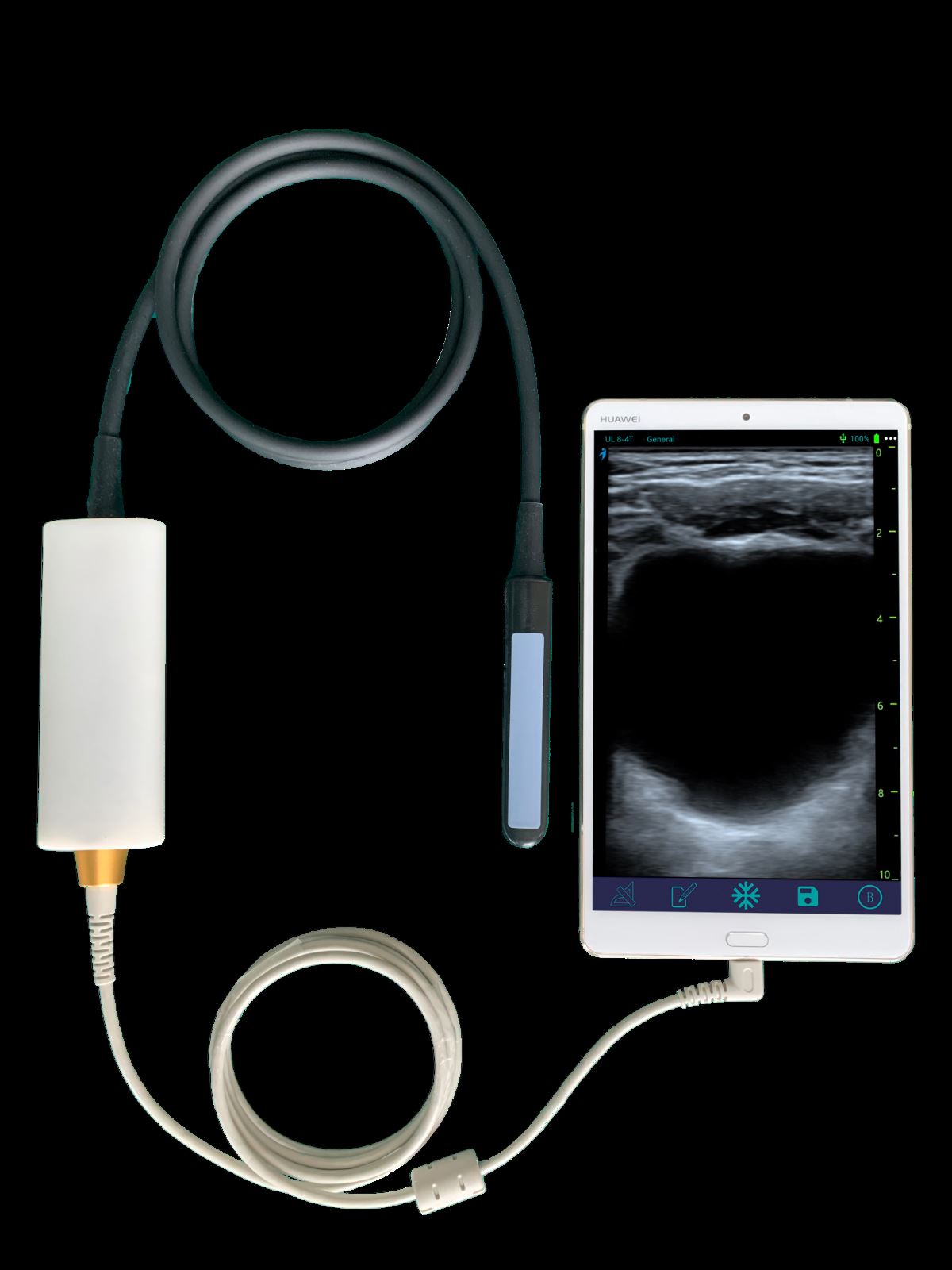

KM8-4TU Ultrasound probe System Description
The KM8-4TU ultrasound probe together with an Android smart phone or tablet is specifically designed for bovine ultrasound examinations.
The extremely light weight and power efficiency makes it very helpful in cow pregnancy diagnoses.
Features/Specs
- 6.5 MHz 64mm linear rectal probe (4.0~8.0 MHz)
- 64 Element probe
- Standard Type-C USB connector
- Power consumption < 1.6W
- Full synthetic aperture beamformer
- Pulse-inversion harmonic imaging
- System scanning depth
- Minimum: 2cm
- Maximum:10cm
- Gray scale level: 256
- Frame rate: 15 FPS
- Digital beamforming channels: 64
- System ADC: 12 Bit
- Imaging mode: B-Mode
- Adaptive speckle reduction imaging
- Wide frequency bandwidth probes
- Flexible display modes: vertical and horizontal
- Cine review: 100 frames
- Maps: 8 gray maps and 8 tint maps
- Measure:Distance, Area, Volume
- Annotations: Text, Arrow, Ellipse, Rectangle Tablet/Phone Requirements
- OS: Android Processor: better than Snapdragon 820
- Port: Type-C, USB 2.0
- OpenCL 1.2 support
